Anti‑Bedsore Systems – Alternating Pressure Mattresses

Anti‑Bedsore Systems – Alternating Pressure Mattresses

Rayman Medical provides a complete range of alternating pressure mattresses designed to prevent and manage pressure ulcers in bedridden patients. These systems ensure continuous pressure redistribution, enhanced comfort, and reliable performance for hospital and home‑care environments.

Available Models

  • RM18 – Bubble Mattress with Alternating Pressure Pump (Model BM001)
  • RM19 – 4” Medical Overlay Mattress with Alternating Pressure Pump (Model TM400)
  • RM20 – 5” Alternating Pressure Pump & Overlay Mattress (Model TM500)
  • RM20 – 5”+3” Alternating Pressure Pump & Overlay Mattress (Model TM501)
  • RM21 – 8” Alternating Pressure Pump & Overlay Mattress (Model TM800)
  • RM22 – 10” Alternating Pressure Pump & Overlay Mattress (Model TM1000)

Rayman alternating pressure systems are engineered for effective pressure relief, quiet operation, and long‑term durability, supporting patient comfort and reducing the risk of decubitus ulcers.

📂 RM18 – code Rayman BM001 – Bubble Mattress with Alternating Pressure Pump

Summary

The Rayman BM001 system combines a bubble style PVC mattress with a compact alternating pressure pump. Designed for effective pressure relief, it offers adjustable pressure settings, low air loss, and flame retardant compliance. Ideal for homecare.

Technical Data Sheet

1. Product Overview

  • Model: BM001 (Mattress), AP002 (Pump)
  • Type: Alternating pressure system for pressure ulcer prevention
  • Surface: Beige bubble style PVC mattress
  • Application: Homecare and clinical use for patients at risk of bedsores

2. Technical Specifications

  • Power Supply: 220V/50Hz or 110V/60Hz
  • Air Output: 4–6 L/min
  • Pressure Range: 40mmHg – 110mmHg
  • Cycle Time: 12 minutes
  • Power Consumption: 1A 250V
  • Mattress Size (inflated): 200cm × 90cm × 7cm
  • Material: PVC, thickness 0.3 mm
  • Weight: Pump 1kg, Mattress 2kg
  • Mattress Features: Ventilating surface, end flap, low air loss
  • Accessories: Pressure control knob, metal hook, repair kit, color box
  • Flame Retardant Standard: CA117

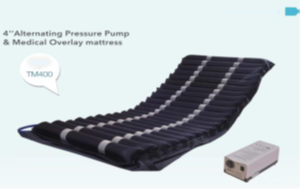

📂 RM19 – Code Rayman TM400 – 4” Medical Overlay Mattress with Alternating Pressure Pump

Technical Data Sheet

1. Product Overview

  • Model: TM400 (Mattress), Pump Model 1
  • Type: 4” overlay mattress with horizontal air cells
  • Application: Advanced pressure ulcer prevention for long term care patients

2. Technical Specifications

  • Power Supply: 220V/50Hz or 110V/60Hz
  • Air Output: ≥ 15 L/min
  • Pressure Range: 40mmHg – 110mmHg
  • Cycle Time: 10 minutes
  • Power Consumption: 20W
  • Fuse: 1A 250V
  • Mattress Size: 200cm × 90cm × 10cm
  • Top Cover: Nylon/PU
  • Bottom Cover: Nylon PVC
  • Air Cells: 22 detachable and washable cells
  • Mattress Features: End flap, low air loss optional
  • Weight: Pump 2.1kg, Mattress 3.5kg
  • Weight Capacity: 140kg
  • Accessories: Pressure control knob, metal hook, spare cell
  • Flame Retardant Standard: CA117

📂 RM20 – 5” Alternating Pressure Pump & Overlay Mattress – Model TM500

Technical Description

The TM500 system is designed to provide effective pressure relief and patient comfort through alternating pressure therapy. It includes a high-performance pump and a modular overlay mattress with replaceable air cells and advanced safety features.

Mattress Specifications

  • Model Code: TM500
  • Dimensions: 200cm (L) × 90cm (W) × 12.7cm (H)
  • Cover Material: PU with zipper
  • Air Cell Material: Nylon PVC / TPU
  • Cell Thickness: 0.35mm
  • Cell Connection: 20pcs Nylon PVC
  • Number of Air Cells: 17
  • CPR Function: Quick deflate for emergency procedures (optional)

Pump Specifications

  • Power Supply: AC 220V/50Hz or 110V/60Hz
  • Air Output: 6–7 L/min
  • Pressure Range: 20–120 mmHg
  • Cycle Time: 30 to 12 minutes
  • Pump Dimensions: 26cm (L) × 90cm (W) × 12cm (H)
  • Weight: 1.6kg
  • Case Material: Flame Retardant ABS CA117
  • Modes: Static mode / Alternate mode
  • Safety Features: Low pressure alarm / Mute / Auto Firm

Accessories and Functional Features

  • Waterproof Top Cover
    Code: TM500-COVER
    Washable and easy to clean for hygiene maintenance.
  • Changeable Air Cells
    Code: TM500-CELL
    Individual air cells can be replaced and cleaned.
  • Pillow Function
    Code: TM500-PILLOW
    The first three air cells remain static and inflated for enhanced head support.
  • Zipper Around Design
    Code: TM500-ZIP
    Full perimeter zipper for easy access and maintenance.
  • CPR Valve
    Code: TM500-CPR
    Quick deflation valve for emergency procedures.

📂 RM20 – 5”+3” Alternating Pressure Pump & Overlay Mattress – Model TM501

Technical Description

The TM501 system combines alternating pressure therapy with enhanced comfort features, including a foam pocket and pillow function. It is designed for patients at risk of pressure ulcers and offers modular components for easy maintenance and emergency response.

Mattress Specifications

  • Model Code: TM501
  • Dimensions: 200cm (L) × 90cm (W) × 12cm (H)
  • Additional 7.6cm foam pocket
  • Cover Material: PU cover with zipper
  • Air Cell Material: Nylon PVC / TPU
  • Cell Thickness: 0.30mm
  • Base Material: Durable Nylon PVC
  • Number of Air Cells: 17
  • CPR Function: Quick deflate for emergency procedures (optional)

Pump Specifications

  • Model Code: HF-8
  • Power Supply: AC 220V/50Hz or 110V/60Hz
  • Air Output: ≥ 8 L/min
  • Pressure Range: 30mmHg (±10mmHg) to 80mmHg (±10mmHg)
  • Cycle Time: 10 to 12 minutes
  • Pump Dimensions: 26cm (L) × 13cm (W) × 10.5cm (H)
  • Weight: 1.6kg
  • Case Material: Flame Retardant ABS C117
  • Modes and Functions: Static mode / Alternate mode / Foam pocket / Panel Lock / Auto Firm / Mute

Accessories and Functional Features

  • Waterproof Top Cover
    Code: TM501-COVER
    Washable and hygienic surface for patient protection.
  • Foam Pocket
    Code: TM501-FOAM
    Integrated 7.6cm foam layer for added comfort and support.
  • Changeable Air Cells
    Code: TM501-CELL
    Replaceable and cleanable cylindrical air cells.
  • Pillow Function
    Code: TM501-PILLOW
    First three air cells remain static and inflated for head support.
  • Zipper Around Design
    Code: TM501-ZIP
    Full perimeter zipper for easy access and maintenance.
  • CPR Valve
    Code: TM501-CPR
    Quick deflation valve for emergency procedures.
  • Panel Lock
    Code: TM501-LOCK
    Prevents accidental changes to pump settings.

📂 RM21 – 8” Alternating Pressure Pump & Overlay Mattress – Model TM800

Technical Description

The TM800 system offers advanced alternating pressure therapy with reinforced support and emergency features. Designed for high-risk patients, it includes a dual-layer air cell structure, waterproof cover, and high-capacity pump with multiple control modes.

Mattress Specifications

  • Model Code: TM800
  • Dimensions: 200cm (L) × 90cm (W) × 20cm (H)
  • Cover Material: PU with zipper
  • Air Cell Material: Nylon / PVC / TPU
  • Cell Thickness: 0.35mm
  • Base Material: Durable Nylon PVC
  • Number of Air Cells: 20
  • Cell-on-Cell Structure: 10cm + 10cm (optional)
  • Weight Capacity: 180kg
  • CPR Function: Quick deflate for emergency procedures (optional)

Pump Specifications

  • Model Code: HOY-4
  • Power Supply: AC 220V/50Hz or 110V/60Hz
  • Pressure Range:
    – 30mmHg to 80mmHg
    – 20mmHg to 55mmHg
  • Cycle Time Options: 10 / 15 / 20 / 25 minutes
  • Pump Dimensions: 31cm (L) × 12cm (W) × 21.5cm (H)
  • Weight: 2.2kg
  • Case Material: Flame Retardant ABS C417
  • Functions: Static mode / Alternate mode / Auto Firm / Alarm Mute / Panel Lock / Seat Inflation

Accessories and Functional Features

  • Waterproof Top Cover
    Code: TM800-COVER
    Washable and hygienic surface for patient protection.
  • Changeable Air Cells
    Code: TM800-CELL
    Replaceable and cleanable dual-layer air cells.
  • Pillow Function
    Code: TM800-PILLOW
    First three air cells remain static and inflated for head support.
  • Zipper Around Design
    Code: TM800-ZIP
    Full perimeter zipper for easy access and maintenance.
  • CPR Valve
    Code: TM800-CPR
    Quick deflation valve for emergency procedures.
  • Panel Lock
    Code: TM800-LOCK
    Prevents accidental changes to pump settings.
  • Seat Inflation
    Code: TM800-SEAT
    Enhanced support for seated patients.
  • Remove Hand Puller
    Code: TM800-HANDLE
    Facilitates mattress handling and repositioning.

📂 RM22 – 10” Alternating Pressure Pump & Overlay Mattress – Model TM1000

Technical Description

The TM1000 system delivers advanced alternating pressure therapy with reinforced structural support and high-capacity airflow. Designed for patients with high risk of pressure ulcers, it features a dual-layer bladder system, waterproof cover, and intelligent pump functions for optimal comfort and safety.

Mattress Specifications

  • Model Code: TM1000
  • Dimensions: 200cm (L) × 100cm (W) × 20cm (H)
  • Cover Material: PU with zipper
  • Air Cell Material: Nylon PVC TPU
  • Cell Thickness: 0.35mm
  • Base Material: Rubber + Nylon PVC
  • Type: Cell-on-cell bladder
  • Weight Capacity: 200kg
  • CPR Function: Quick deflate for emergency procedures (optional)

Pump Specifications

  • Model Code: HOY-S
  • Power Supply: AC 220V/50Hz or 110V/60Hz
  • Air Output: 12 L/min
  • Pressure Range: 20mmHg to 120mmHg
  • Cycle Time Options: 10 / 15 / 20 / 25 minutes
  • Pump Dimensions: 26cm (L) × 18cm (W) × 12cm (H)
  • Weight: 2.5kg
  • Case Material: Flame Retardant ABS
  • Technical Mode: Quick Connector
  • Functions: Static mode / Alternate mode / Auto Firm / Alarm Mute / Panel Lock / Seat Inflation / Two BL Air Pump

Accessories and Functional Features

  • Waterproof Top Cover
    Code: TM1000-COVER
    Washable and hygienic surface for patient protection.
  • Changeable Air Cells
    Code: TM1000-CELL
    Replaceable and cleanable dual-layer bladder cells.
  • Pillow Function
    Code: TM1000-PILLOW
    First three air cells remain static and inflated for head support.
  • Zipper Around Design
    Code: TM1000-ZIP
    Full perimeter zipper for easy access and maintenance.
  • CPR Valve
    Code: TM1000-CPR
    Quick deflation valve for emergency procedures.
  • Panel Lock
    Code: TM1000-LOCK
    Prevents accidental changes to pump settings.
  • Seat Inflation
    Code: TM1000-SEAT
    Enhanced support for seated patients.
  • Remove Hand Puller
    Code: TM1000-HANDLE
    Facilitates mattress handling and repositioning.
  • Two BL Air Pump
    Code: TM1000-BL
    Dual air pump system for increased airflow and stability.
