Infusion & Syringe Pumps
Rayman Medical provides advanced infusion and syringe pump systems designed for precise and reliable medication delivery in hospitals, ICUs, emergency departments, and clinical care units. These devices ensure accurate flow control, intuitive operation, and dependable performance for continuous and intermittent infusion therapies.
Available Models
- RM12-SP01 – Single-Channel Infusion Pump with Precise Flow Control
- RM12-SP02 – Dual-Channel Infusion Pump with Independent Control
- RM12-IP01 – Syringe Pump with Precision Dosing Control
Rayman infusion and syringe pumps are engineered for safety, accuracy, and ease of use, supporting clinical staff in delivering essential medications with confidence and efficiency.

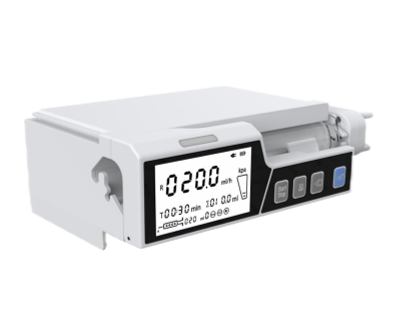

RM12-SP01 – Single-Channel Infusion Pump with Precise Flow Control
Key Specifications
- Infusion Modes: Continuous, Volume based, Time based
- Flow Rate Range: 0.1 – 1200 ml/h (increment 0.1 ml/h)
- Accuracy: ±5%
- Syringe Compatibility: 5 ml – 60 ml standard syringes
- Display: 4.3″ color LCD, real-time monitoring
- Alarms: Occlusion, end of infusion, syringe dislodgement, low battery
- Data Storage: Up to 2000 infusion records
- Connectivity: USB port, optional Wi‑Fi/LAN for data transfer
- Power Supply: AC and rechargeable battery (≥ 8 hours continuous operation)
- Dimensions: Compact, lightweight design for bedside and mobile use
- Safety Standards: IEC/ISO compliant, anti‑bolus function
Description
RM12‑SP01 is a reliable single‑channel infusion pump designed for accurate and continuous delivery of intravenous fluids and medications. It features a user‑friendly interface, adjustable flow rates, and multiple alarm systems for enhanced patient safety. With a compact design and battery backup, it is suitable for use in hospitals, outpatient clinics, and emergency transport. Ideal for precise infusion therapy in general medical care.

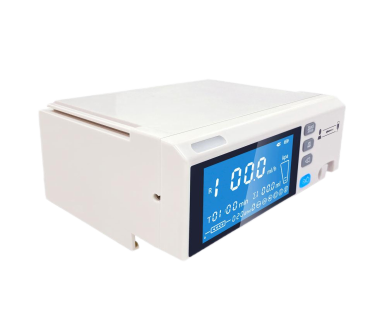

RM12-SP02 – Dual-Channel Infusion Pump with Independent Control
Key Specifications
- Infusion Channels: 2 independent channels
- Infusion Modes: Continuous, Volume based, Time based, Sequential/Parallel infusion
- Flow Rate Range: 0.1 – 1200 ml/h (increment 0.1 ml/h)
- Accuracy: ±5%
- Syringe Compatibility: 5 ml – 60 ml standard syringes
- Display: 5″ color LCD, dual channel monitoring
- Alarms: Occlusion, end of infusion, syringe dislodgement, channel error, low battery
- Data Storage: Up to 4000 infusion records
- Connectivity: USB, LAN, optional Wi‑Fi for hospital integration
- Power Supply: AC and rechargeable battery (≥ 8 hours continuous operation)
- Dimensions: Compact design, lightweight for bedside and mobile use
Description
RM12‑SP02 is a dual‑channel infusion pump designed for the simultaneous administration of two intravenous therapies with independent flow control. It features a clear LCD interface, programmable infusion modes, and advanced safety alarms to prevent occlusion, air bubbles, and over‑infusion. With a compact design and long battery life, it is ideal for intensive care units, surgical wards, and emergency transport. Ensures precise and safe multi‑infusion management.

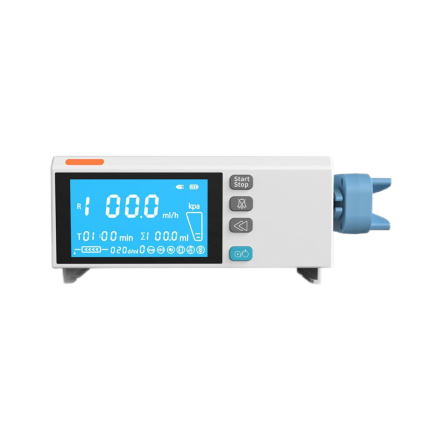

RM12-IP01 – Syringe Pump with Precision Dosing Control
Key Specifications
- Infusion Mode: Continuous, Volume based, Time based
- Flow Rate Range: 0.1 – 1500 ml/h (increment 0.1 ml/h)
- Accuracy: ±2%
- Syringe Compatibility: 5 ml – 60 ml standard syringes
- Display: 4.3″ color LCD, real-time monitoring
- Alarms: Occlusion, end of infusion, syringe dislodgement, low battery, system error
- Data Storage: Up to 2000 infusion records
- Connectivity: USB port, optional LAN/Wi‑Fi for hospital integration
- Power Supply: AC and rechargeable battery (≥ 8 hours continuous operation)
- Dimensions: Compact, lightweight design for bedside and mobile use
- Safety Standards: IEC/ISO compliant, anti‑bolus function
Description
RM12‑IP01 is a high‑precision syringe pump designed for controlled delivery of small‑volume infusions. It supports various syringe sizes and features programmable flow rates, bolus dosing, and anti‑bolus protection. With a clear LCD interface, multiple safety alarms, and battery operation, it ensures accurate and safe medication administration in ICUs, neonatal care, and anesthesia departments. Ideal for applications requiring fine dosing and continuous infusion reliability.
