Portable Color Doppler Ultrasound

Portable Color Doppler Ultrasound

Rayman Medical offers advanced portable ultrasound systems equipped with Color Doppler technology for high‑quality diagnostic imaging in hospitals, clinics, emergency departments, and mobile medical units. These devices provide excellent image clarity while maintaining maximum portability.

Available Models

  • RM03-P01 – Portable Ultrasound Machine with Color Doppler
  • RM03-P02 – Portable Ultrasound System with Dual Probe Support

Rayman portable Color Doppler systems are engineered for versatility, ease of use, and reliable performance in point‑of‑care diagnostics and routine imaging applications.

RM03-P01 – Portable Ultrasound Machine with Color Doppler

Description

The RM03-P01 is a lightweight and portable ultrasound system equipped with advanced imaging capabilities, including color Doppler functionality. Designed for point-of-care diagnostics, it features a high-resolution LCD screen, multiple probe compatibility, and intuitive controls. Ideal for emergency rooms, outpatient clinics, and field operations, it delivers reliable imaging for abdominal, obstetric, cardiac, and vascular applications.

Technical Specifications

  • Type: Portable diagnostic ultrasound system
  • Display: 15″ high-resolution LCD
  • Imaging Modes: B, M, Color Doppler, PW, CW, Power Doppler
  • Probes: Convex, Linear, optional Endocavitary
  • Functions: Real-time imaging, tissue harmonic imaging, speckle reduction, multi-beam forming
  • Connectivity: USB, DICOM compatible
  • Power: AC supply + rechargeable battery
  • Weight: ~8–10 kg
  • Certifications: CE, ISO13485

Applications

  • Abdominal imaging
  • Cardiac imaging
  • Obstetric and gynecological imaging
  • Vascular imaging
  • Emergency and point‑of‑care diagnostics
RM03-T01 – Trolley-Based Ultrasound System with High-Definition Imaging Type: Trolley-mounted diagnostic ultrasound system Display: 17″ high-definition LCD monitor Probe Ports: Dual probe support (Convex, Linear, Cardiac, Transvaginal, Micro Convex) Imaging Modes: B, 2B, 4B, B+M, Color Doppler, Power Doppler, PW, CW Functions: Tissue harmonic imaging, speckle reduction, multi-beam forming, dynamic focusing Connectivity: USB, DICOM compatible Power: AC 100–240V, optional battery backup Weight: ~60–70 kg Certifications: CE, ISO13485 Applications: Abdominal, cardiac, obstetric, gynecological, vascular, musculoskeletal, urology, emergency imaging The RM03-T01 is a full-featured trolley-based ultrasound system designed for high-performance imaging in hospitals and diagnostic centers. It features a large HD monitor, advanced imaging modes (B, M, Color Doppler, PW, CW), and multiple probe ports for seamless workflow. With its ergonomic design, powerful processing capabilities, and customizable presets, it supports a wide range of clinical applications including cardiology, obstetrics, gynecology, and abdominal diagnostics.

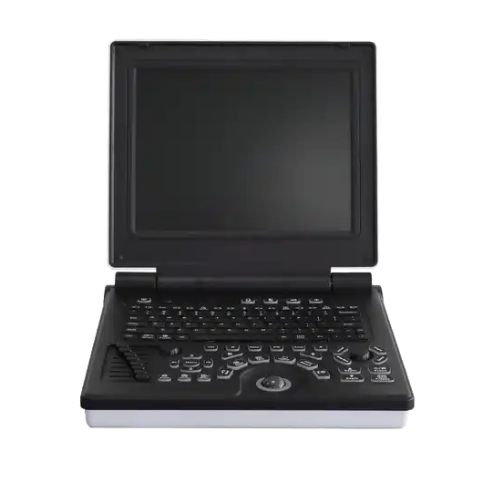

Rayman RM03-BW01 – Black & White Portable Ultrasound System Type: Portable diagnostic ultrasound system Display: 12–15″ black & white LCD monitor Probe Ports: Dual probe connectors (Convex, Linear; optional Micro Convex / Transvaginal) Imaging Modes: B, 2B, 4B, B+M Functions: Real-time imaging, tissue harmonic, multi-beam forming, speckle reduction Storage & Connectivity: Internal memory, USB support Power: AC 100–240V, rechargeable battery for mobile use Weight: ~6–8 kg Certifications: CE, ISO13485 Applications: General imaging – abdominal, obstetric, gynecological, vascular, musculoskeletal, emergency The RM03-BW01 is a compact black & white ultrasound machine designed for essential diagnostic imaging in primary care and rural settings. It features a lightweight design, high-sensitivity probes, and a clear grayscale display for reliable imaging of abdominal, obstetric, and musculoskeletal structures. With long battery life and easy portability, it is ideal for mobile clinics, emergency response, and veterinary use.

Rayman RM03-BW02 – Color Ultrasound System with Enhanced Portability

Technical Specifications

  • Type: Portable Color ultrasound diagnostic system
  • Display: 12–15″ LCD monitor
  • Probe Ports: Dual probe connectors (Convex, Linear; optional Micro Convex / Transvaginal)
  • Imaging Modes: B, 2B, 4B, B+M
  • Functions: Real-time imaging, tissue harmonic, multi-beam forming, speckle reduction
  • Connectivity: USB support
  • Power: AC 100–240V, rechargeable battery
  • Weight: ~6–8 kg
  • Certifications: CE, ISO13485

Applications

  • General imaging: abdominal, obstetric, gynecological
  • Vascular imaging
  • Musculoskeletal imaging
  • Emergency diagnostics

Description

The RM03-BW02 is a portable Color ultrasound machine designed for essential diagnostic imaging in remote and resource‑limited settings. It features a compact design, intuitive controls, and high‑sensitivity probes for clear grayscale imaging. Suitable for abdominal, obstetric, and basic musculoskeletal evaluations, it offers reliable performance with long battery life and easy transport. Ideal for mobile clinics, rural healthcare, and veterinary use.

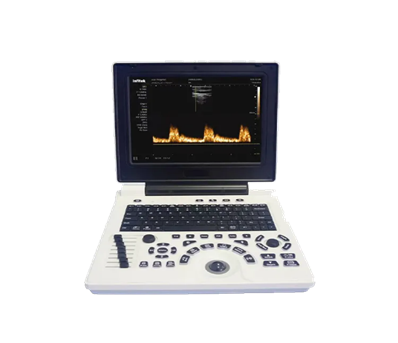

Rayman RM03-W02 – Mobile Ultrasound System with Enhanced Imaging Modes

Technical Specifications

  • Type: Mobile ultrasound diagnostic system
  • Display: 15–17″ high-definition LCD monitor
  • Probe Ports: Multiple probe connectors (Convex, Linear, Micro Convex, Transvaginal, Cardiac)
  • Imaging Modes: B, 2B, 4B, B+M, Color Doppler, Power Doppler, PW, CW
  • Functions: Tissue harmonic imaging, speckle reduction, multi-beam forming, dynamic focusing
  • Connectivity: USB, DICOM compatible
  • Power: AC 100–240V, rechargeable battery for mobile use
  • Weight: ~55–65 kg
  • Certifications: CE, ISO13485

Applications

  • Abdominal imaging
  • Cardiac imaging
  • Obstetric and gynecological imaging
  • Vascular imaging
  • Musculoskeletal imaging
  • Urology
  • Emergency diagnostics

Description

The RM03-W02 is a wheeled ultrasound system designed for high mobility and advanced diagnostic performance. It features a large HD monitor, multiple probe support, and a full suite of imaging modes including B-mode, M-mode, Color Doppler, and Power Doppler. With its user-friendly interface and robust design, it ensures accurate imaging across a wide range of clinical applications such as cardiology, obstetrics, gynecology, and emergency care. Ideal for hospitals requiring flexible deployment and consistent imaging quality.
